Boshart Industries, 10" Aluminum, Watertight, Vermin Proof,

SKU#

WTCL-A10

In stock

WTCL-A10

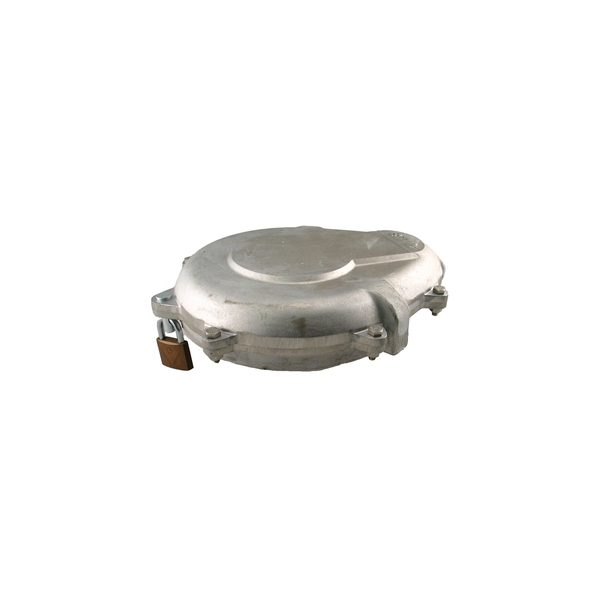

Boshart WTCL-A Series Well Caps (A08, A10, A12)

The Boshart WTCL-A08, WTCL-A10, and WTCL-A12 are premium, watertight, locking aluminum well caps designed for 8", 10", and 12" well casings respectively. These caps provide secure, sanitary, and vermin-proof protection for municipal, industrial, and high-quality private well installations.

WTCL-A08 Well Cap

Casing Size: 8" I.D. (8-5/8" O.D.)
Material: High-quality aluminum (ADC 10)
Watertight Seal: Double O-ring system for superior sealing
Locking Feature: Locking pin for use with a 5/16” padlock shank (padlock not included)
Vermin-Proof: Two 3/4" air vents with stainless steel mesh
Conduit Connection: 1-1/4" FPT for pump cable
Hardware: Stainless steel for corrosion resistance
Grounding: Ground bolt and tin-plated copper ring terminals included
Well Log: Included inside cap
Lead-Free: Meets no-lead standards
Certifications: ASSE #1093-2019, WSC PAS-97 (2019)
Unit Weight: 5.25 lbs

WTCL-A10 Well Cap

Casing Size: 10" I.D. (10-3/4" O.D.)
Material: High-quality aluminum (ADC 10)
Watertight Seal: Double O-ring system for watertight and vermin-proof protection
Locking Feature: Locking pin for padlock security (padlock not included)
Vermin-Proof: Two 3/4" air vents with stainless steel mesh
Conduit Connection: 1-1/4" FPT for pump cable
Hardware: Stainless steel for maximum corrosion resistance
Grounding: Ground bolt and terminals included
Well Log: Included inside cap
Lead-Free: Meets no-lead standards
Certifications: ASSE #1093-2019, WSC PAS-97 (2019)
Unit Weight: 6.00 lbs

WTCL-A12 Well Cap

Casing Size: 12" I.D. (12-3/4" O.D.)
Material: High-quality aluminum (ADC 10)
Watertight Seal: Double O-ring system for watertight and vermin-proof protection
Locking Feature: Locking pin for padlock security (padlock not included)
Vermin-Proof: Two 3/4" air vents with stainless steel mesh
Conduit Connection: 1-1/4" FPT for pump cable
Hardware: Stainless steel for maximum corrosion resistance
Grounding: Ground bolt and terminals included
Well Log: Included inside cap
Lead-Free: Meets no-lead standards
Certifications: ASSE #1093-2019, WSC PAS-97 (2019)
Unit Weight: 6.5 lbs

Shared Benefits & Features

Easy installation and removal for maintenance and inspection
Watertight and vermin-proof design ensures sanitary protection
Padlock-ready tamper-proof security (padlock not included)
Large screened air vents for ventilation and pest prevention
Stainless steel hardware for superior corrosion resistance
Grounding terminal and hardware included for safety
Well log included for recording installation data
Lead-free construction, meeting strict standards
Certified to ASSE and WSC industry standards for sanitary well caps

Overview

Specifications

10" WATERTIGHT ALUM. WELL CAP

Class:35501
Casing Size I.D.:10"
Casing Size O.D.: 10-3/4"
Unit Weight: 6.00
Conduit Connection: 1-1/4" FPT
Air Vents: (2) 3/4"
Materials: Aluminum
Standard: No Lead Lead-Free
LOCK NOT INCLUDED
