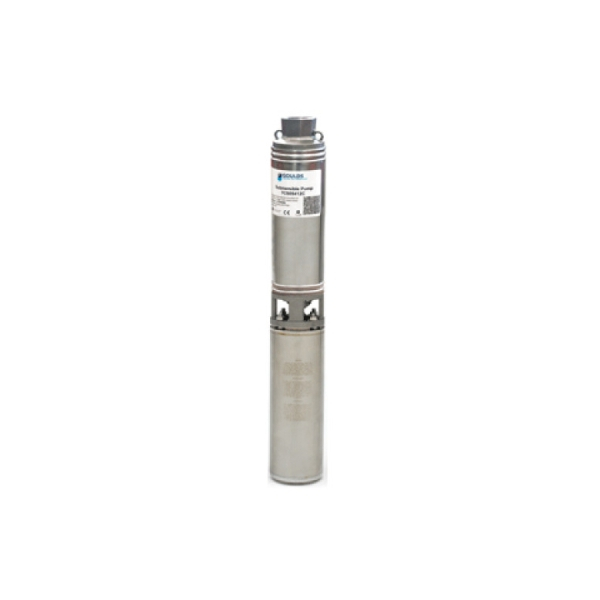

Goulds 10CS07412C, 10GPM, 3/4HP, 230V, 3 Wire, 4" CS Series Submersible Well Pump
| Pump Model | HP | PSI | Depth to Water in Feet/Ratings in GPM (Gallons per Minute) | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 340 | 380 | 420 | 460 | 500 | 540 | 580 | 620 | 660 | 700 | 740 | 780 | 820 | |||
| 10GS05R | ½ | 0 | 15.6 | 14.0 | 12.4 | 10.4 | 6.5 | |||||||||||||||||||||||
| 20 | 15.4 | 13.5 | 11.5 | 9.2 | 6.0 | |||||||||||||||||||||||||
| 30 | 13.0 | 11.1 | 8.0 | 4.0 | ||||||||||||||||||||||||||
| 40 | 11.0 | 7.9 | 3.0 | |||||||||||||||||||||||||||
| 50 | 7.0 | |||||||||||||||||||||||||||||
| 60 | ||||||||||||||||||||||||||||||
| Shut-off PSI | 61 | 53 | 44 | 34 | 26 | 18 | 10 | |||||||||||||||||||||||
| 10GS05 | 1/2 | 0 | 16.0 | 15.3 | 14.3 | 12.8 | 11.3 | 9.0 | 6.4 | |||||||||||||||||||||
| 20 | 15.9 | 14.9 | 13.8 | 12.5 | 10.8 | 8.3 | 4.8 | |||||||||||||||||||||||
| 30 | 15.7 | 14.6 | 13.5 | 12.3 | 10.5 | 7.8 | 4.0 | |||||||||||||||||||||||
| 40 | 14.5 | 13.4 | 12.0 | 10.3 | 7.5 | 3.0 | ||||||||||||||||||||||||
| 50 | 13.0 | 11.5 | 9.8 | 7.2 | ||||||||||||||||||||||||||
| 60 | 11.3 | 9.0 | 6.4 | |||||||||||||||||||||||||||
| Shut-off PSI | 89 | 81 | 72 | 63 | 55 | 46 | 37 | 29 | 20 | 11 | ||||||||||||||||||||
| 10GS07 | 3/4 | 0 | 16.0 | 15.2 | 14.3 | 13.4 | 12.5 | 11.5 | 10.3 | 9.0 | 7.0 | 4.0 | ||||||||||||||||||
| 20 | 15.8 | 15.0 | 14.0 | 13.0 | 12.3 | 11.2 | 10.2 | 8.5 | 6.0 | |||||||||||||||||||||
| 30 | 15.7 | 14.8 | 13.9 | 12.8 | 12.0 | 11.0 | 9.8 | 8.2 | 5.5 | |||||||||||||||||||||
| 40 | 15.6 | 14.7 | 13.8 | 12.7 | 11.9 | 10.8 | 9.7 | 8.1 | 5.2 | |||||||||||||||||||||
| 50 | 15.3 | 14.4 | 13.5 | 12.6 | 11.6 | 10.5 | 9.4 | 7.5 | 4.8 | |||||||||||||||||||||
| 60 | 14.3 | 13.4 | 12.5 | 11.5 | 10.3 | 9.0 | 7.0 | 4.0 | ||||||||||||||||||||||
| Shut-off PSI | 130 | 121 | 113 | 104 | 95 | 87 | 78 | 69 | 61 | 52 | 43 | 35 | 26 | 17 | 9 | |||||||||||||||
| 10GS10 | 1 | 0 | 15.8 | 15.2 | 14.5 | 13.7 | 12.8 | 12.0 | 11.0 | 10.0 | 6.7 | |||||||||||||||||||
| 20 | 15.7 | 14.9 | 14.3 | 13.5 | 12.7 | 11.7 | 10.6 | 9.6 | 8.1 | 6.5 | ||||||||||||||||||||
| 30 | 16.0 | 15.6 | 14.8 | 14.2 | 13.3 | 12.5 | 11.6 | 10.4 | 9.4 | 7.8 | 5.5 | 3.0 | ||||||||||||||||||
| 40 | 16.0 | 15.5 | 14.7 | 14.1 | 13.2 | 12.4 | 11.5 | 10.3 | 9.1 | 5.0 | 3.0 | |||||||||||||||||||
| 50 | 15.3 | 14.6 | 13.9 | 13.0 | 12.3 | 11.3 | 10.1 | 8.9 | 4.3 | |||||||||||||||||||||
| 60 | 15.8 | 15.2 | 14.5 | 13.7 | 12.0 | 11.0 | 10.0 | 8.6 | 6.7 | 4.0 | ||||||||||||||||||||
| Shut-off PSI | 158 | 150 | 141 | 132 | 124 | 115 | 106 | 98 | 89 | 81 | 72 | 63 | 55 | 46 | 37 | 20 | ||||||||||||||
| 10GS15 | 1½ | 0 | 15.7 | 15.3 | 14.8 | 14.4 | 13.3 | 12.2 | 10.9 | 9.3 | 7.1 | 3.0 | ||||||||||||||||||
| 20 | 16.0 | 15.6 | 15.2 | 14.7 | 14.3 | 13.7 | 13.2 | 11.9 | 10.6 | 9.0 | 6.5 | |||||||||||||||||||
| 30 | 15.9 | 15.5 | 15.2 | 14.6 | 14.2 | 13.5 | 13.1 | 12.6 | 11.3 | 9.7 | 7.6 | 4.0 | ||||||||||||||||||
| 40 | 15.8 | 15.5 | 15.1 | 14.6 | 14.2 | 13.5 | 13.0 | 12.5 | 11.8 | 10.3 | 8.8 | 6.0 | ||||||||||||||||||
| 50 | 15.7 | 15.4 | 14.9 | 14.5 | 14.0 | 13.4 | 12.8 | 12.3 | 11.7 | 11.0 | 9.4 | 7.4 | 3.4 | |||||||||||||||||
| 60 | 15.7 | 15.3 | 14.8 | 14.4 | 13.9 | 13.3 | 12.8 | 12.2 | 11.6 | 10.9 | 10.1 | 8.1 | 5.6 | |||||||||||||||||
| Shut-off PSI | 197 | 188 | 180 | 171 | 162 | 154 | 144 | 136 | 128 | 119 | 110 | 93 | 76 | 58 | 41 | 24 | 6 | |||||||||||||
| 10GS20 | 2 | 0 | 16.0 | 15.7 | 14.9 | 14.2 | 13.4 | 12.4 | 11.4 | 10.0 | 8.2 | 5.8 | ||||||||||||||||||
| 20 | 15.9 | 15.5 | 15.3 | 14.8 | 14.1 | 13.2 | 12.2 | 11.0 | 9.9 | 8.0 | 5.2 | |||||||||||||||||||
| 30 | 15.8 | 15.4 | 15.1 | 14.7 | 14.4 | 13.5 | 12.7 | 11.7 | 10.3 | 8.8 | 6.5 | |||||||||||||||||||
| 40 | 15.8 | 15.4 | 15.1 | 14.7 | 14.7 | 14.4 | 12.9 | 12.2 | 10.9 | 9.5 | 7.8 | 3.9 | ||||||||||||||||||
| 50 | 16.1 | 15.7 | 15.3 | 15.0 | 14.6 | 14.2 | 14.0 | 13.4 | 12.5 | 11.5 | 10.1 | 8.5 | 6.0 | |||||||||||||||||
| 60 | 16.0 | 15.7 | 15.3 | 14.9 | 14.5 | 14.2 | 13.8 | 13.4 | 12.8 | 11.8 | 10.7 | 9.1 | 7.2 | 3.4 | ||||||||||||||||
| Shut-off PSI | 225 | 216 | 208 | 199 | 190 | 182 | 173 | 164 | 156 | 139 | 121 | 104 | 87 | 69 | 52 | 35 | 17 | |||||||||||||
| 10GS30 | 3 | 0 | 15.8 | 15.2 | 14.6 | 14.0 | 13.3 | 12.6 | 11.9 | 11.0 | 10.0 | 9.0 | 7.5 | 5.8 | ||||||||||||||||
| 20 | 15.7 | 15.1 | 14.5 | 13.9 | 13.2 | 12.5 | 11.8 | 10.9 | 9.9 | 8.8 | 7.2 | 5.4 | ||||||||||||||||||
| 30 | 15.9 | 15.4 | 14.8 | 14.2 | 13.4 | 12.8 | 12.0 | 11.3 | 10.3 | 9.3 | 8.1 | 6.2 | 3.8 | |||||||||||||||||
| 40 | 15.9 | 15.6 | 15.0 | 14.4 | 13.8 | 13.1 | 12.4 | 11.5 | 10.8 | 9.7 | 8.6 | 7.1 | 4.7 | |||||||||||||||||
| 50 | 16.0 | 15.8 | 15.6 | 15.3 | 14.7 | 14.1 | 13.3 | 12.7 | 11.9 | 11.0 | 10.2 | 9.1 | 7.8 | 6.0 | 3.0 | |||||||||||||||
| 60 | 16.0 | 15.8 | 15.5 | 15.2 | 14.8 | 14.3 | 13.7 | 12.9 | 12.3 | 11.4 | 10.6 | 9.6 | 8.3 | 6.8 | 4.5 | |||||||||||||||
| Shut-off PSI | 284 | 275 | 267 | 258 | 249 | 232 | 215 | 197 | 180 | 163 | 145 | 128 | 111 | 94 | 76 | 59 | 42 | 24 | ||||||||||||
Discover reliable performance with the Goulds 10CS07412C Submersible Well Pump, designed for efficiency and durability in your water system needs. Perfect for residential and commercial applications, this pump ensures a steady water supply from your well with ease.
- Flow Rate: 10 Gallons Per Minute (GPM)
- Motor Power: 3/4 Horsepower
- Voltage: 230 Volts
- Wiring Configuration: 3 Wire
- Material: Durable Stainless Steel
- Diameter: 4 Inch
- Shipping Weight: 27 lbs
- Free Shipping Available
Product Details
The Goulds 10CS07412C is a part of the CS Series Submersible Well Pumps, known for their robust construction and high-quality materials. This model is crafted from stainless steel, providing resistance to corrosion and ensuring longevity in various water conditions.
With its 3/4 horsepower motor and efficient design, this pump delivers a consistent flow rate of 10 GPM, making it ideal for a wide range of applications. The 230V power supply and 3-wire configuration ensure easy installation and reliable operation.
Applications
This submersible well pump is suitable for use in residential water systems, irrigation, and other applications requiring a dependable water supply. Its compact 4-inch diameter makes it compatible with most well casings.
Manufacturer Information
Manufactured by Goulds, a leader in water technology solutions, this pump is part of their renowned CS Stainless Series, known for quality and performance. Trust Goulds for your water system needs.
Performance
The Goulds 10CS07412C comes with a performance chart for the 10GS model, providing detailed information on its capabilities and efficiency.
Goulds 10CS07412C, 10GPM, 3/4HP, 230V, 3 Wire, 4" CS Series Submersible Well PumpThe Goulds CS Series pumps can be operated continuously without damage to the motor. Its face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design. Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites and are corrosion resistant and non-toxic. The discharge head and motor adapter are cast 303 stainless steel for strength and durability. Access to the motor is made easy by motor mounting nuts using a standard open-end wrench. The stainless steel casing is strong and corrosion-resistant. The proprietary, engineered polymer-bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl-bearing spider for excellent abrasion resistance. The Check valve screws into the discharge head from the top and can be easily removed for drain back systems or replacement without having to disassemble the pump.
More Information
| Voltage | 230v |
|---|---|
| Wire Count | 3 Wire |
| Motor Horsepower | .75 |
| Material | Stainless Steel |
| Diameter | 4 Inch Diameter |
| Model # | 10CS07412CL |
| Manufacturer | Goulds |
| Performance Chart | Goulds Performance Chart 10GS |
| Shipping Weight | 27 |
