Goulds 7CS07412CL, 7GPM, 3/4HP, 230V, 3 Wire, 4" CS Series Submersible Well Pump
| Pump Model | HP | PSI | Depth to Water in Feet/Ratings in GPM (Gallons per Minute) | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | 340 | 360 | 380 | 400 | 420 | 440 | 460 | 480 | 500 | 540 | 580 | 620 | ||||||||
| 7GS05R | ½R | 0 | 10.2 | 8.2 | 7.5 | 5.9 | 3.6 | ||||||||||||||||||||||||||||
| 20 | 9.8 | 8.5 | 7.0 | 5.3 | 2.5 | ||||||||||||||||||||||||||||||
| 30 | 9.6 | 8.3 | 6.8 | 4.9 | 1.9 | ||||||||||||||||||||||||||||||
| 40 | 9.4 | 8.1 | 6.5 | 4.6 | 1.2 | ||||||||||||||||||||||||||||||
| 50 | 9.2 | 7.8 | 6.3 | 4.2 | 0.5 | ||||||||||||||||||||||||||||||
| 60 | 7.6 | 6.0 | 3.8 | ||||||||||||||||||||||||||||||||
| Shut-off PSI | 85 | 77 | 68 | 59 | 51 | 42 | 33 | 25 | 16 | 7 | |||||||||||||||||||||||||
| 7GS05 | 1/2 | 0 | 10.1 | 9.2 | 8.3 | 7.4 | 6.3 | 5.0 | 3.4 | ||||||||||||||||||||||||||
| 20 | 9.8 | 9.0 | 8.1 | 7.1 | 6.0 | 4.6 | 2.7 | ||||||||||||||||||||||||||||
| 30 | 9.7 | 8.8 | 7.9 | 6.9 | 5.8 | 4.3 | 2.4 | ||||||||||||||||||||||||||||
| 40 | 10.4 | 9.6 | 8.7 | 7.8 | 6.7 | 5.6 | 4.1 | 2.0 | |||||||||||||||||||||||||||
| 50 | 10.3 | 9.4 | 8.5 | 7.6 | 6.6 | 5.4 | 3.8 | 1.7 | |||||||||||||||||||||||||||
| 60 | 10.2 | 9.3 | 8.4 | 7.5 | 6.4 | 5.1 | 3.5 | ||||||||||||||||||||||||||||
| Shut-off PSI | 125 | 116 | 107 | 99 | 90 | 81 | 73 | 64 | 55 | 47 | 38 | 29 | 21 | 12 | |||||||||||||||||||||
| 7GS07 | 3/4 | 0 | 10.0 | 9.3 | 8.6 | 7.9 | 7.1 | 6.2 | 5.2 | 4.0 | 2.4 | ||||||||||||||||||||||||
| 20 | 10.4 | 9.8 | 9.1 | 8.4 | 7.7 | 6.9 | 6.0 | 4.9 | 3.5 | 1.8 | |||||||||||||||||||||||||
| 30 | 10.3 | 9.7 | 9.0 | 7.5 | 6.7 | 5.8 | 4.7 | 3.3 | 1.5 | ||||||||||||||||||||||||||
| 40 | 10.2 | 9.4 | 8.8 | 8.2 | 7.4 | 6.6 | 5.6 | 4.5 | 3.1 | ||||||||||||||||||||||||||
| 50 | 10.1 | 9.4 | 8.8 | 8.1 | 7.3 | 6.5 | 5.5 | 4.3 | 2.8 | ||||||||||||||||||||||||||
| 60 | 10.0 | 9.3 | 8.7 | 7.9 | 7.2 | 6.3 | 5.3 | 4.1 | 2.5 | ||||||||||||||||||||||||||
| Shut-off PSI | 140 | 131 | 122 | 114 | 105 | 96 | 88 | 79 | 70 | 62 | 53 | 44 | 36 | 27 | 18 | 10 | |||||||||||||||||||
| 7GS10 | 1 | 0 | 10.1 | 9.6 | 9.0 | 8.5 | 7.9 | 7.3 | 6.7 | 6.0 | 5.3 | 4.4 | 3.4 | 2.1 | |||||||||||||||||||||
| 20 | 10.4 | 9.9 | 9.4 | 8.9 | 8.3 | 7.7 | 7.1 | 6.5 | 5.8 | 5.0 | 4.1 | 3.0 | 1.6 | ||||||||||||||||||||||
| 30 | 10.3 | 9.9 | 9.3 | 8.8 | 8.2 | 7.6 | 7.0 | 6.4 | 5.7 | 4.9 | 4.0 | 2.8 | |||||||||||||||||||||||
| 40 | 10.3 | 9.8 | 9.2 | 8.7 | 8.1 | 7.5 | 6.9 | 6.3 | 5.6 | 4.8 | 3.8 | 2.6 | |||||||||||||||||||||||
| 50 | 10.2 | 9.7 | 9.2 | 8.6 | 8.0 | 7.4 | 6.8 | 6.2 | 5.4 | 4.6 | 3.7 | 2.4 | |||||||||||||||||||||||
| 60 | 10.1 | 9.6 | 9.1 | 8.5 | 7.9 | 7.3 | 6.7 | 6.0 | 5.3 | 4.5 | 3.5 | 2.2 | |||||||||||||||||||||||
| Shut-off PSI | 166 | 158 | 149 | 140 | 132 | 123 | 114 | 106 | 97 | 88 | 80 | 71 | 62 | 54 | 45 | 36 | 28 | 19 | 10 | ||||||||||||||||
| Pump Model | HP | PSI | Depth to Water in Feet/Ratings in GPM (Gallons per Minute) | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 | 220 | 240 | 260 | 280 | 300 | 340 | 380 | 420 | 460 | 500 | 540 | 580 | 620 | 660 | 700 | 740 | 780 | 820 | 860 | 900 | 940 | 980 | 1020 | 1060 | 1100 | 1140 | |||||||||
| 7GS15 | 1½ | 0 | 10.2 | 9.3 | 8.5 | 7.6 | 6.8 | 5.9 | 4.7 | 2.6 | |||||||||||||||||||||||||
| 20 | 10.1 | 9.2 | 8.3 | 7.5 | 6.7 | 5.8 | 4.5 | 2.1 | |||||||||||||||||||||||||||
| 30 | 10.4 | 9.6 | 8.7 | 7.8 | 7.0 | 6.2 | 5.1 | 3.3 | |||||||||||||||||||||||||||
| 40 | 10.3 | 9.9 | 9.1 | 8.2 | 7.4 | 6.6 | 5.6 | 4.2 | 1.6 | ||||||||||||||||||||||||||
| 50 | 10.3 | 9.9 | 9.4 | 8.6 | 7.7 | 6.9 | 6.0 | 4.9 | 2.9 | ||||||||||||||||||||||||||
| 60 | 10.2 | 9.8 | 9.4 | 8.9 | 8.1 | 7.2 | 6.4 | 5.4 | 3.9 | ||||||||||||||||||||||||||
| Shut-off PSI | 194 | 186 | 177 | 168 | 151 | 134 | 116 | 99 | 82 | 64 | 47 | 30 | 12 | ||||||||||||||||||||||
| 7GS20 | 2 | 0 | 9.8 | 9.3 | 8.7 | 8.4 | 7.8 | 7.1 | 6.3 | 5.4 | 4.5 | 3.5 | 2.2 | ||||||||||||||||||||||
| 20 | 9.8 | 9.3 | 8.7 | 8.4 | 7.7 | 6.9 | 6.2 | 5.3 | 4.3 | 3.2 | 2.8 | ||||||||||||||||||||||||
| 30 | 9.9 | 9.5 | 9.0 | 8.5 | 7.9 | 7.2 | 6.4 | 5.7 | 4.4 | 3.7 | |||||||||||||||||||||||||
| 40 | 10.0 | 9.7 | 9.2 | 8.7 | 8.3 | 7.5 | 6.7 | 6.0 | 5.2 | 4.1 | 3.0 | ||||||||||||||||||||||||
| 50 | 9.9 | 9.4 | 8.9 | 8.5 | 7.8 | 7.2 | 6.3 | 5.5 | 4.7 | 3.5 | |||||||||||||||||||||||||
| 60 | 10.0 | 9.6 | 9.1 | 8.7 | 8.2 | 7.4 | 6.6 | 5.8 | 5.0 | 4.0 | |||||||||||||||||||||||||
| Shut-off PSI | 268 | 251 | 234 | 216 | 199 | 182 | 165 | 147 | 130 | 113 | 95 | 80 | 61 | ||||||||||||||||||||||
| 7GS30 | 3 | 0 | 9.8 | 9.5 | 9.2 | 8.7 | 8.3 | 7.9 | 7.4 | 6.8 | 6.2 | 5.4 | 4.7 | 3.9 | 3.0 | 2.0 | |||||||||||||||||||
| 20 | 9.8 | 9.4 | 9.2 | 8.7 | 8.3 | 7.8 | 7.2 | 6.7 | 6.2 | 5.3 | 4.5 | 3.7 | 3.3 | 1.7 | |||||||||||||||||||||
| 30 | 10.0 | 9.6 | 9.2 | 8.8 | 8.5 | 8.0 | 7.5 | 6.9 | 6.3 | 5.7 | 4.8 | 4.1 | 3.2 | 2.3 | |||||||||||||||||||||
| 40 | 10.0 | 9.7 | 9.4 | 9.0 | 8.6 | 8.2 | 7.7 | 7.2 | 6.6 | 5.9 | 5.2 | 4.4 | 3.6 | 2.7 | 1.7 | ||||||||||||||||||||
| 50 | 9.9 | 9.5 | 9.2 | 8.7 | 8.4 | 7.9 | 7.4 | 6.8 | 6.3 | 5.5 | 4.8 | 3.9 | 3.1 | 2.2 | |||||||||||||||||||||
| 60 | 10.0 | 9.7 | 9.3 | 9.0 | 8.6 | 8.1 | 7.6 | 7.0 | 6.5 | 5.8 | 5.1 | 4.2 | 3.4 | 2.5 | 1.5 | ||||||||||||||||||||
| Shut-off PSI | 320 | 303 | 286 | 268 | 251 | 234 | 216 | 199 | 182 | 165 | 147 | 130 | 113 | 95 | 78 | 61 | 43 | 27 | |||||||||||||||||
Experience the power and reliability of the Goulds 7CS07412CL submersible well pump, designed to meet your water needs with precision and efficiency. This model is part of the renowned Goulds Submersible 4" Well Pumps - CS Stainless Series, ensuring durability and performance.
- Manufacturer: Goulds
- Model Number: 7CS07412CL
- Phase: Single Phase
- Wire Count: 3 Wire
- Motor Horsepower: 0.75 HP
- Voltage: 230V
- Discharge Connection: 1 1/4"
- Shipping Weight: 20 lbs
- Performance Chart: Refer to Goulds Performance Chart 7GS for detailed performance metrics.
Categories:
- Goulds Submersible 4" Well Pumps - CS Stainless Series
- Products
- Pumps
- Tanks & Well Components
- Submersible Well Pumps from Goulds, Grundfos, & Shakti
Enjoy the convenience of free shipping on this high-quality submersible well pump, making it an excellent choice for residential or commercial use. Trust in Goulds for reliable and efficient water pumping solutions.

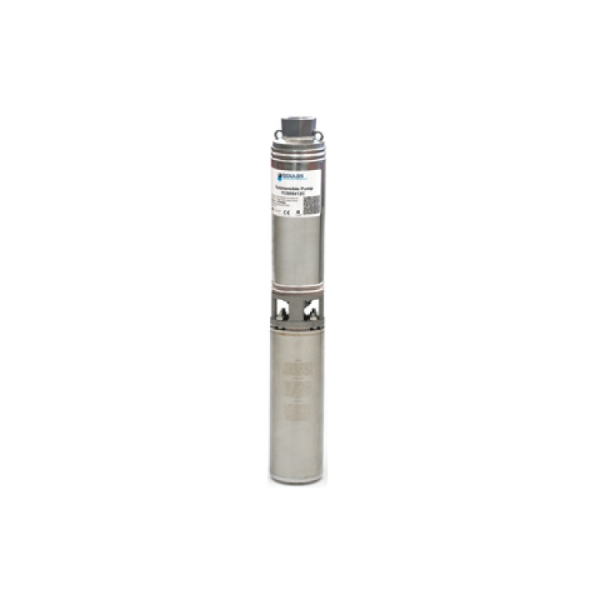

Goulds 7CS07412CL, 7GPM, 3/4HP, 230V, 3 Wire, 4" CS Series Submersible Well PumpThe Goulds CS Series pumps can be operated continuously without damage to the motor. Its face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design. Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites and are corrosion resistant and non-toxic. The discharge head and motor adapter are cast 303 stainless steel for strength and durability. Access to the motor is made easy by motor mounting nuts using a standard open-end wrench. The stainless steel casing is strong and corrosion-resistant. The proprietary, engineered polymer-bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl-bearing spider for excellent abrasion resistance. The Check valve screws into the discharge head from the top and can be easily removed for drain back systems or replacement without having to disassemble the pump.
More Information
| Phase | 1 |
|---|---|
| Voltage | 230v |
| Wire Count | 3 wire |
| Discharge Connection | 1 1/4" |
| Model # | 7CS07412CL |
| Manufacturer | Goulds |
| Performance Chart | Goulds Performance Chart 7GS |
| Shipping Weight | 20 |
